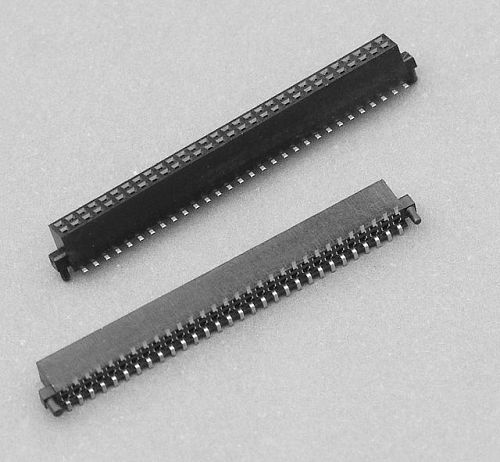

• 606 series Female header 1.27mm pitch SMT type for square in profile 3.60mm

    606 series Female header 1.27mm pitch SMT type for square in profile 3.60mm

    Technical data:

    Insulator Material: High Temperature Thermoplastic, UL 94V-0
    Contact: stamped and formed, Phosphor Bronze
    Plating: Au or Sn over Nickel
    Current Rating: 1 Amp
    Contact resistance: 20 milliohms Max.
    Insulator resistance: 500 Megohms min.
    Dielectric withstanding: AC 500V for 1 Minute.
    Operating Temperature: -40°C to +105°C.
    Max. processing Temp: 230°C for 30-60 seconds. 260°C for 10 seconds.
    Mates with: Pitch 1.27mm, 0.4mm male header

    View customer Drawing (Pdf)

606 series Female header 1.27mm pitch SMT type for square in profile 3.60mm

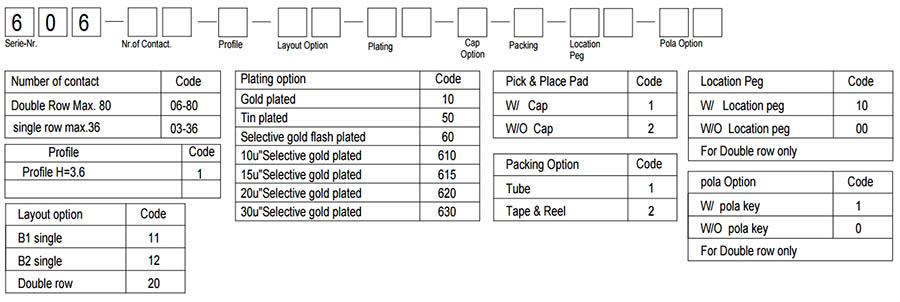

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 606
Nr. of Contact
Profile: H 1: 3.6mm
Layout Option
Plating option
Pick & Place Pad
Packing option
Location Peg(For Double row only)
Pola Option(For Double row only)
