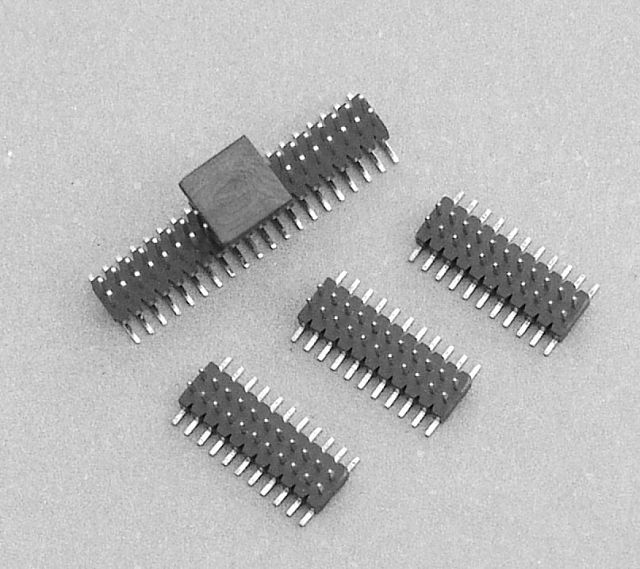

596 series 1.0mm Pitch strip header Dip Type

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0
Contact: 0.30 x 0.30mm
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature: -40 ℃to + 105 ℃.
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃for 10 seconds.
Mates with: 597
