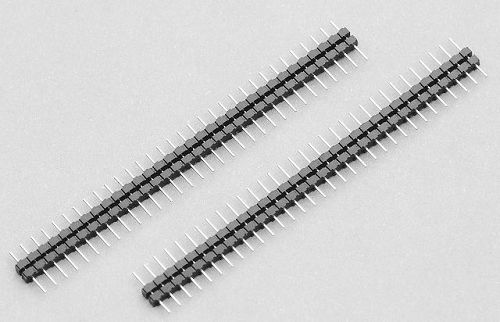

• 152 / 152DB series Pin -Header- Strips Single/ Double Row with round contact 2.54mm pitch

    152 / 152DB series Pin -Header- Strips Single/ Double Row with round contact 2.54mm pitch

    Technical data:
    Insulator Material:     High Temperature      Thermoplastic,UL 94V-0

    Contact: Dia. : 0.50mm

    Contact Material: copper alloy

    Plating: Au or Sn over Nickle

    Current Rating: 3 Amp

    Insulator resistance: 5000 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃to + 105 ℃.

    Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

    Mates with: 2.54mm Pitch PCB connector



    View customer Drawing (Pdf)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr.
Terminal Code
NO. of Contact (02~40 poles Single, 04~80 poles Double)
No. of row
Plating Option
