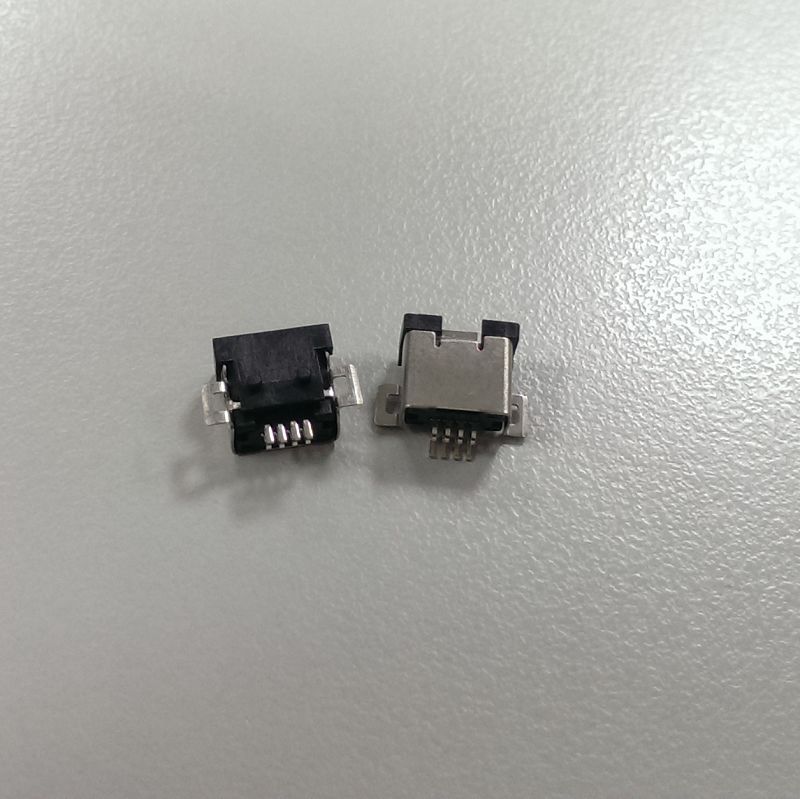

827 series mini USB SMD type

Technical date:
SHELL: Stainless steel w/120u" Tin plated
HOUSING: LCP OR PBT 30% GLASS UL 94-V0
CONTACT: PH. Bronze selective gold plated
Rating: 100V AC 1A MAX or 12V DC 2A MAX
Insulation Resistance: 50mohm MIN at 250V DC
Dielectric Strength: 250V AC/1minute
Contact Resistance: 30mohm MAX
Insertion Force: 4.5Kg Max
Withdrawal Force: 0.9Kg~3Kg
