    118 series Centronic Socket and Pin 180° IDC Type

    Technical data:
    Material shell:     Steel tin-coat over nikel
    Insulator: Thermoplastic polyester
    Color Insulator: Black
    Burning properties: Self extinguishing rated
                                          UL94V0
    Contact: Copper alloy
    Contact surface: Gold over nickel
    Operating temperature: -55℃ to + 125℃
    Electrical data:
    Current rating:     5A
    Electrical rating: 500V eff.
    Insulation resistance: 1000Mohm min. 500V DC

    View customer Drawing (Pdf)

118 series Centronic Socket and Pin 180° IDC Type

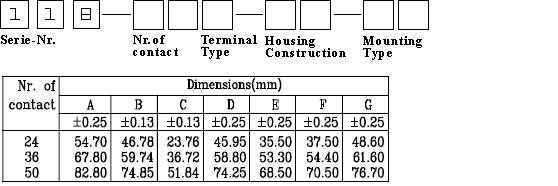

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 118
Nr. of Contact
Terminal Type
Housing Construction
Mouting Type
