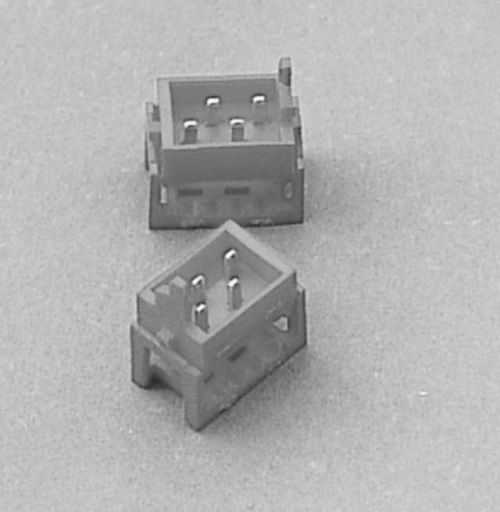

    660F series Male On Wire Type 1.27 Pitch (Micro - Match connector)

    Technical data:
    Insulator Material:     Thermoplastic Polyester,PBT rated UL94-V0

    Color Insulator: Red

    Contact: Phosphor bronze

    Plating: Tin over nickel

    Operating Temperature: -40 ℃to + 105 ℃.

    Current Rating: 1 Amp

    Contact resistance: 20 milliohms Max.

    Insulator resistance: 1000m min. at DC 100V

    Dielectric withstanding: AC 500V for 1 Minute

    Wire size: 28 AWG

    View customer Drawing (Pdf)

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 660F
Nr. of contact
Plating option
Packing option 1:Tube
