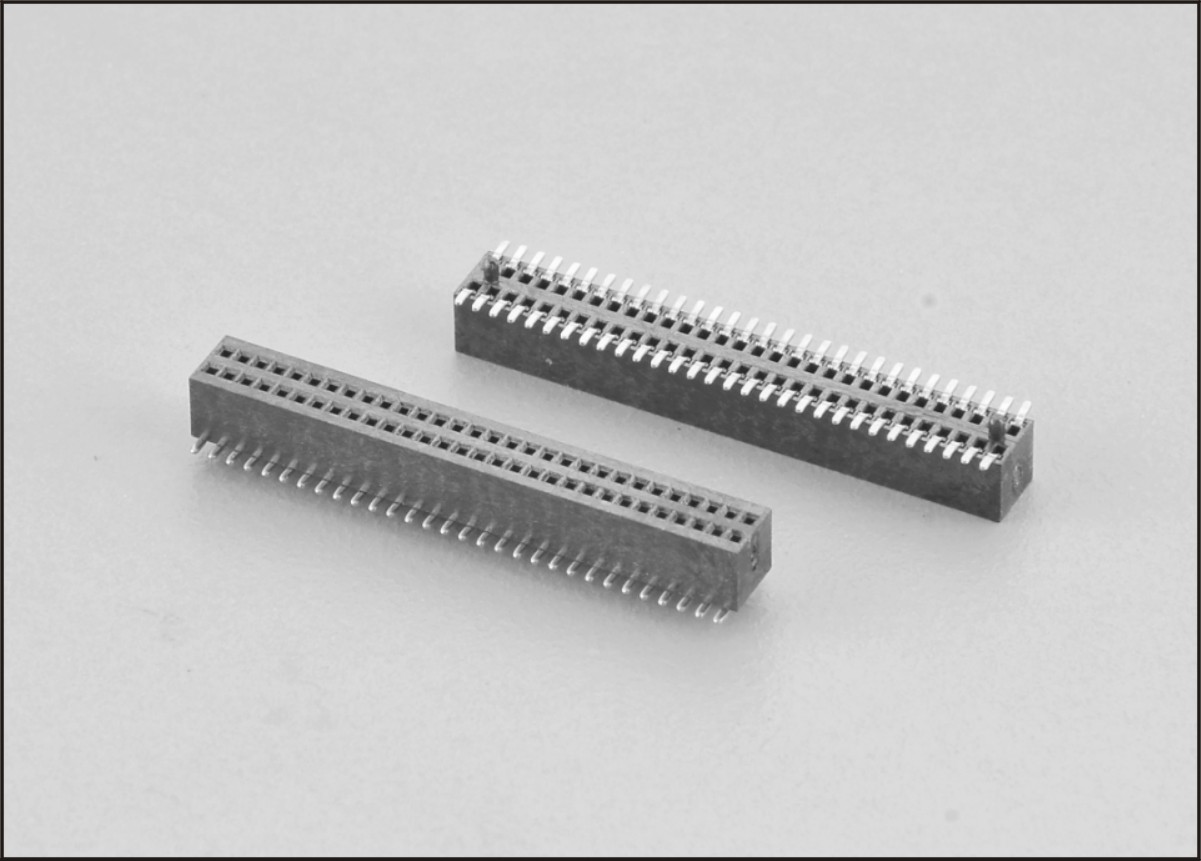

862 series 0.8mm Pitch Female Header Double Row SMT Type

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact Material: copper alloy

Plating: Au or Sn over Nickel

Current Rating: 0.5 Amp

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 300V for 1 Minute.

Operating Temperature: -40 ℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: 861
