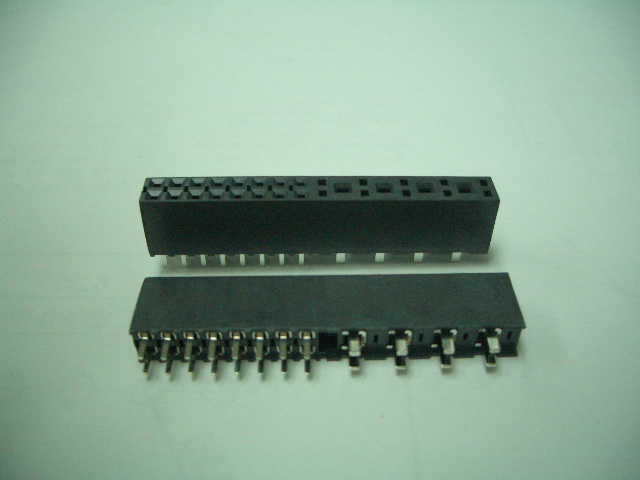

539B series 5.08/2.54PH Power COMBO Female Headers DIP/SMT Type

Technical data:
Insulator Material:High Temperature Thermoplastic, UL 94V-0

Contact: phosphor bronze for signal contact, Phosphor Bronze/BeCu For Power contact

Plating: Au/Sn over Nickle

Current Rating: 8.2 Amp 30℃ Temperature Rise (Power)

Contact resistance: 10 milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 850V

Operating Temperature: -40℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: 539A
