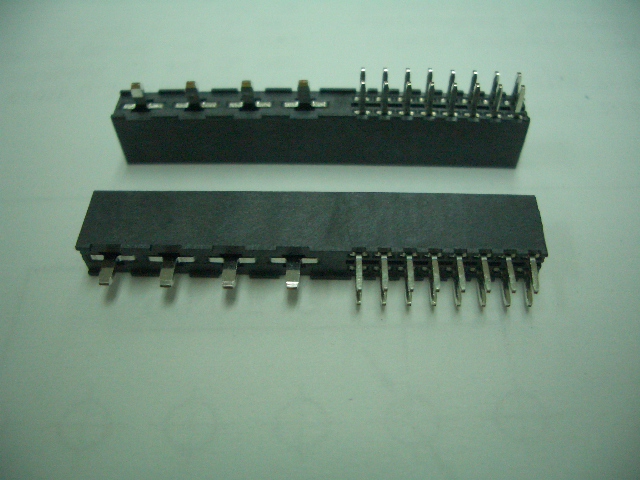

539D series 5.08/2.00PH Power COMBO Female Headers DIP Type

Technical data:
Insulator Material:High Temperature  Thermoplastic,UL 94V-0

Contact: phosphor bronze for signal contact  Phosphor Bronze/BeCu For Power contact

Plating: Au/Sn over Nickle

Current Rating: 6.8 Amp 30℃ Temperature Rise(Power)

Contact resistance: 10 milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V

Operating Temperature: -40℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: 539C
