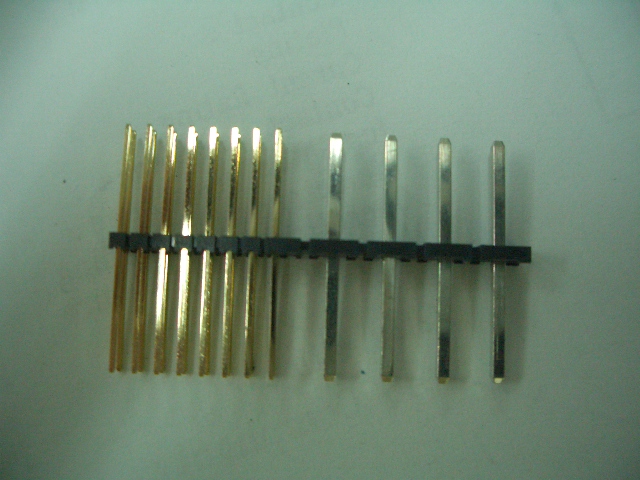

539C series 5.08/2.00PH Power COMBO Male Headers DIP Type

Technical data:
Insulator Material: Thermoplastic, UL 94V-0

Contact: 1.14 X 1.14mm

Contact Material: copper alloy

Plating:

              Power Pin: Tin plated over nickle

              Signal Pin: Tin or Au plated over nickel

Current Rating: 8.2 Amp 30℃ Temperature Rise (Power)

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: Pitch 5.08mm, 539D
