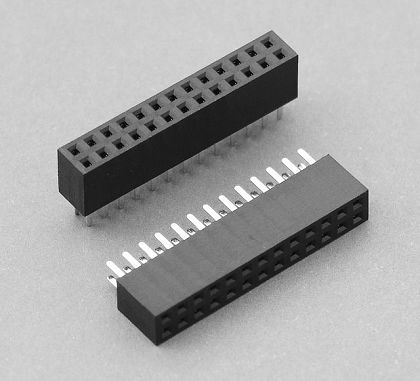

624 series Female Headers Height 7.1mm & 8.5mm 2.54mm pitch

Technical data:
Insulator Material: High Temperature Thermoplastic, UL 94V-0

Contact: stamped and formed, Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 3 Amp

Contact resistance: 20 milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃ for 10 seconds.

Mates with: Pitch 2.54 mm ,   0.635mm male header
