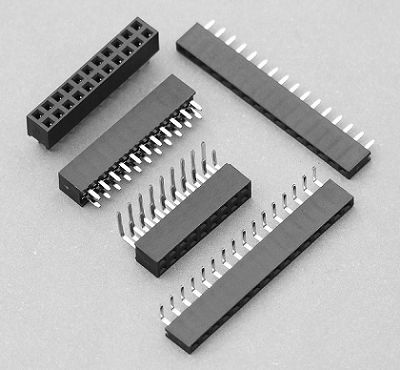

160 /162 series Economy Female -Headers- 2.54mm pitch Height 5.7mm Straight / Right Angle

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickel

Current Rating: 3 Amp

Contact resistance: 20 milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: Pitch 2.54 mm ,   0.635mm male header
