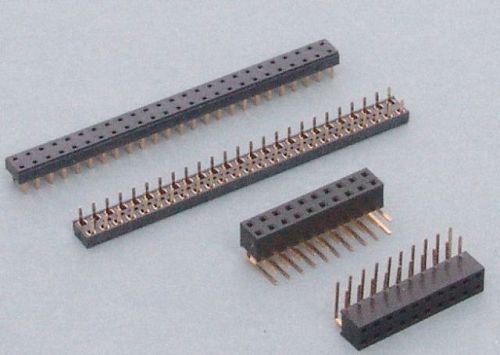

316-1 series Economy Female-Headers-2.0mm pitch

Technical data:
Insulator Material:  LCP ,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: Pitch 2.0 mm ,   0.50mm male header
