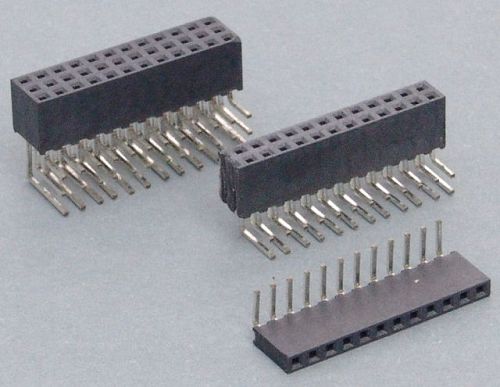

136 series female header H 6.35 2.0mm pitch Right angle Type

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -65 ℃ to + 105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: Pitch 2.0 mm ,   0.5mm male header
