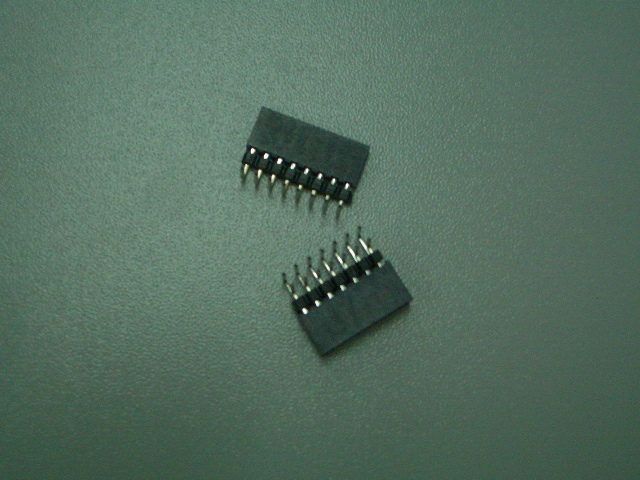

136 series female header 2.0mm pitch H6.35 Right angle B Type

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20 milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -55 ℃  to  +105 ℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: Pitch 2.0 mm , 0.50mm male header
