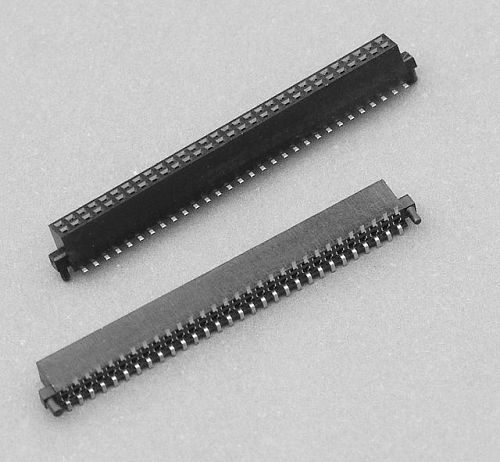

    606 series Female header 1.27mm pitch SMT type for square in profile 4.50mm

    Technical data:
    Insulator Material:     High Temperature      Thermoplastic,UL 94V-0

    Contact: stamped and formed,Phosphor Bronze

    Plating: Au or Sn over Nickle

    Current Rating: 1 Amp

    Contact resistance: 20milliohms Max.

    Insulator resistance: 500 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃to + 105 ℃.

    Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

    Mates with: Pitch 1.27 mm ,   0.4mm male header

    View customer Drawing (Pdf)

606 series Female header 1.27mm pitch SMT type for square in profile 4.50mm

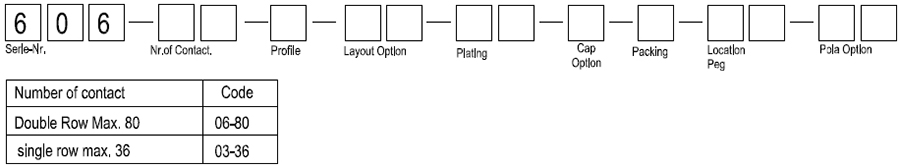

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 606
Nr. of Contact
Profile: H 2: 4.5mm
Layout Option
Plating option
Pick & Place Pad
Packing option
Location Peg(For Double row only)
Pola Option(For Double row only)
