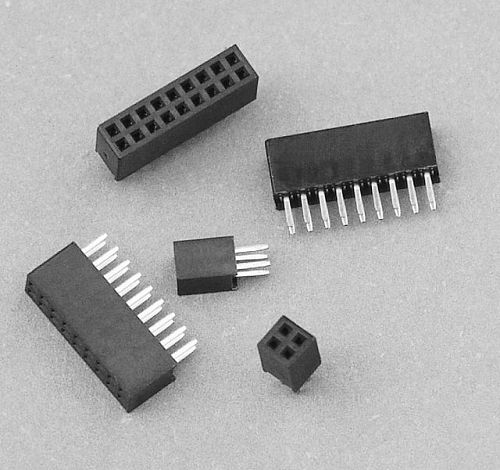

605 series Female header 1.27mm pitch Straight type for square in Profile 4.30mm

Technical data:
Insulator Material: High Temperature Thermoplastic, UL 94V-0

Contact: stamped and formed, Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃to + 105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: Pitch 1.27 mm ,   0.4mm male header
