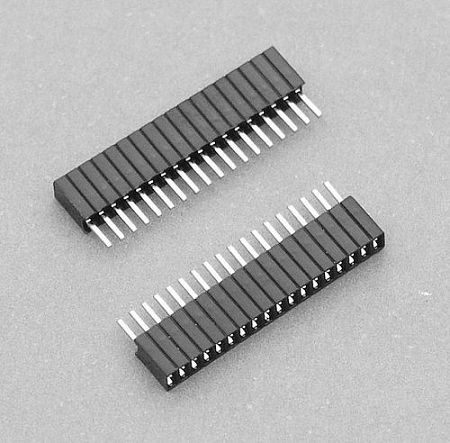

603 series High-Density Female header -Economy Version 1.27mm pitch Height 4.6mm

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to + 105℃.

Max. processing Temp: 230  ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: Pitch 1.27mm ,  0.46mm male header
