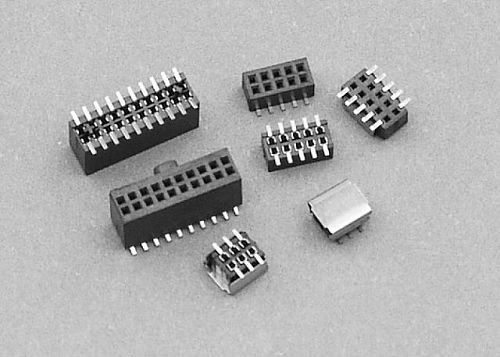

597 series 1.0mm pitch Female Header

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Contact resistance: 20milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to + 105℃.

Max. processing Temp: 230℃  for 30-60 seconds.    260 for 10 seconds.

Mates with: 595,596
