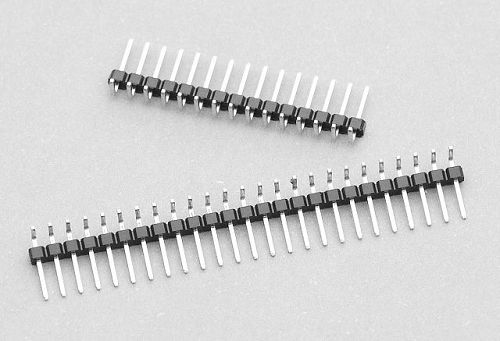

143B series Pin- Header -Strip- Single row -2.54mm pitch profile 1.5 mm& 1.7mm

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: 0.635 x 0.635mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 3 Amp

Insulator resistance: 5000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃to + 105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: 157,158,159,160,162,342,623,624,625
