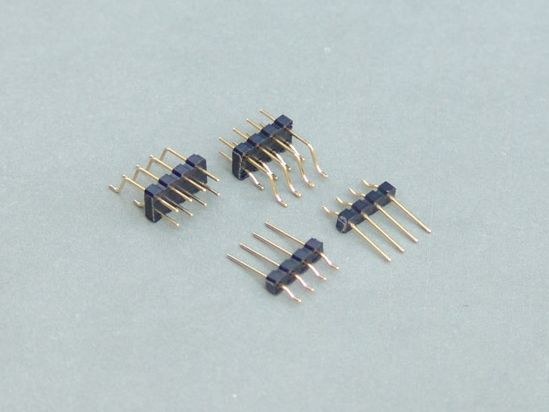

152-2 series Pin -Header- Strips with round contact 2.54mm pitch Horizontal SMT Type

Technical Data:

Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: Φ 0.50mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 3 Amp

Insulator resistance: 5000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: 2.54mm Pitch PCB connector
