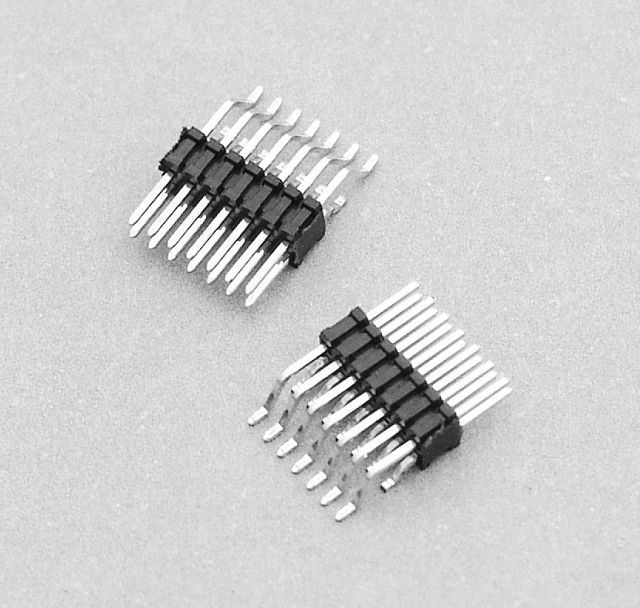

609A series Pin -Header- Strip-Double row for Surface Mount Technic and High-Temperature Body 1.27mm pitch

Technical Data:

Insulator Material: High Temperature Thermoplastic, UL 94V-0.
Contact: 0.40x0.40mm
Contact Material: copper alloy
Plating: Au or Sn over Nickel
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min
Dielectric withstanding: AC 500V for 1 Minute
Operating Temperature: -40℃ to +105℃.
Max. processing Temp: 230℃ for 30–60 seconds. 260℃ for 10 seconds.
Mates with: 613 & □1.27 mm Pitch Female Header
