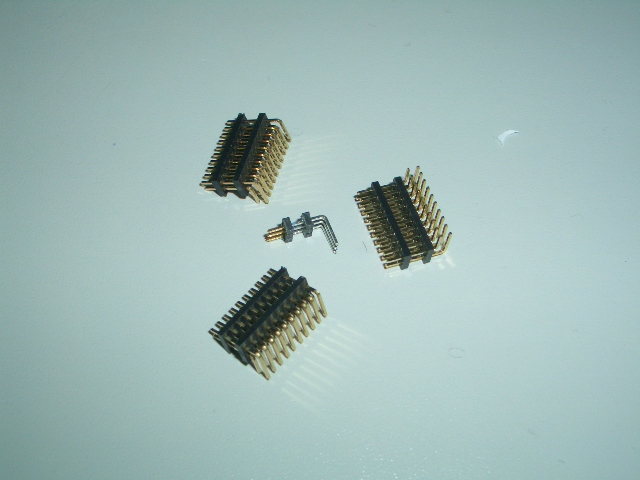

600-7 series Pin -Header- Strips- Single/Double row- 1.27mm x1.27mm pitch - Right angle

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: 0.40 x 0.40mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.
