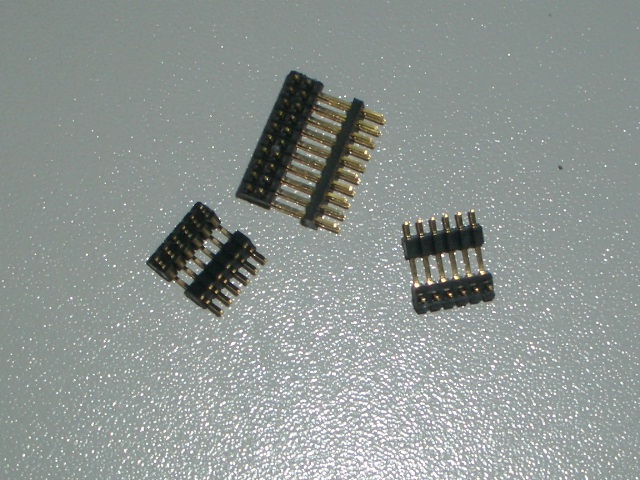

608-2 series Pin-Header-Strips-Single/Double row-1.27mm Right angle

Technical data:
Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: 0.50 x 0.50mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 3 Amp

Insulator resistance: 5000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃  to  +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260 ℃ for 10 seconds.
