• 532 series 3.96mm Power Connector 06 to 12 contacts

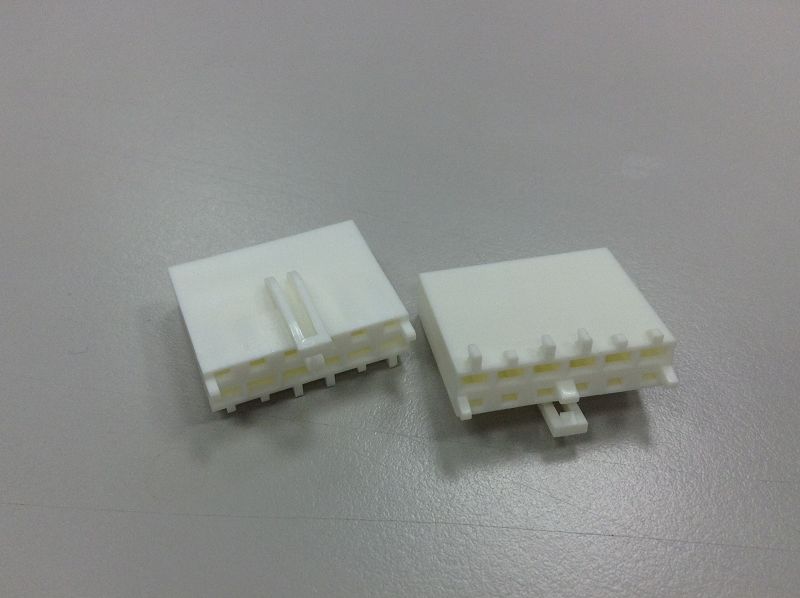

    532 series 3.96mm Power Connector 06 to 12 contacts

    Technical data:
    6 Circuits
    Contact Material: Copper alloy
    Wafer Materal: Nylon, UL 94V-0
    Current rating : 5A AC, DC
    Voltage rating : 250V AC, Maximum
    Temperature range : -25℃〜 +90℃
    Contact Resistance: 20 mohm Max
    Insulation Resistance: 1000 Mohm min
    Withstand Voltage: 1500V AC/minute
    P.C.Board Thickness : 1.6mm (.63")

    View customer Drawing (Pdf)

532 series 3.96mm Power Connector 06 to 12 contacts

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 532
Nr. of Contact
Connector Type 1: Straight
Plating option
Location peg option
