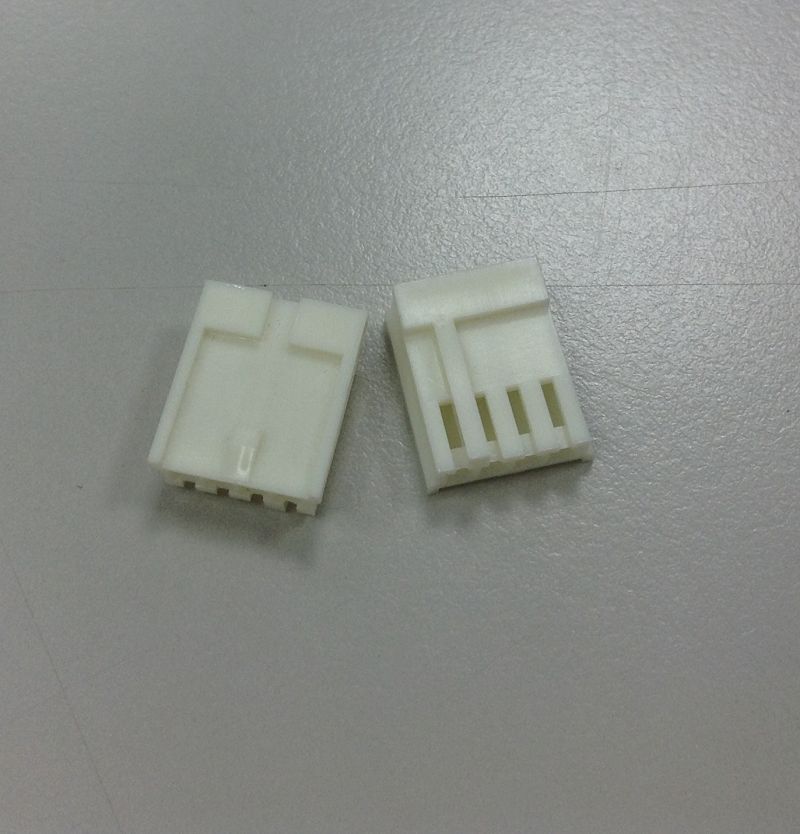

• 531 series 2.54mm Shrouded Header and Crimp Housing and Contact 04 contacts

    531 series 2.54mm Shrouded Header and Crimp Housing and Contact 04 contacts

    Technical data:
     Contact Material: Copper alloy
     Applocable wies: AWG # 24 to 28
     Wafer (Housing) Materal: Nylon, UL 94V-0
     Current rating : 3A AC, DC
     Voltage rating : 250V AC, Maximum
     Temperature range : -25℃〜 +90℃
     Contact Resistance: 20 mohm Max
     Insulation Resistance: 1000 Mohm min
     Withstand Voltage: 1000V AC/minute
     P.C.Board Thickness : 1.6mm (0.063")

    View customer Drawing (Pdf)

531 series 2.54mm Shrouded Header and Crimp Housing and Contact 04 contacts

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 531
Nr. of Contact 04: 04 Contacts
Connector Type
Plating option
