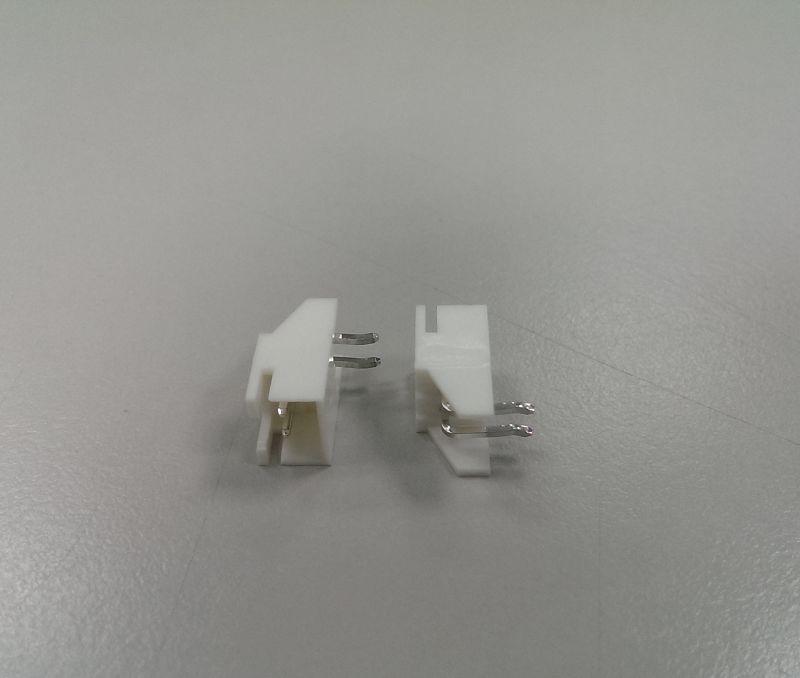

    527 series 2.5mm Shrouded Header and Crimp Housing and Contact 02 to 29 contacts

    Technical data:
    Contact Material: Copper alloy
    Applocable wies: AWG # 22 to 28
    Wafer (Housing) Materal: Nylon, UL 94V-0
    Current rating : 3A AC, DC
    Voltage rating : 250V AC Maximum
    Temperature range : -25℃〜 +90℃
    Contact Resistance: 20 mohm Max
    Insulation Resistance: 1000 Mohm min
    Withstand Voltage: 1000V AC/minute
    P.C.Board Thickness : 1.6mm (0.063")

    View customer Drawing (Pdf)

527 series 2.5mm Shrouded Header and Crimp Housing and Contact 02 to 29 contacts

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 527
Nr. of Contact
Connector Type
Plating option
