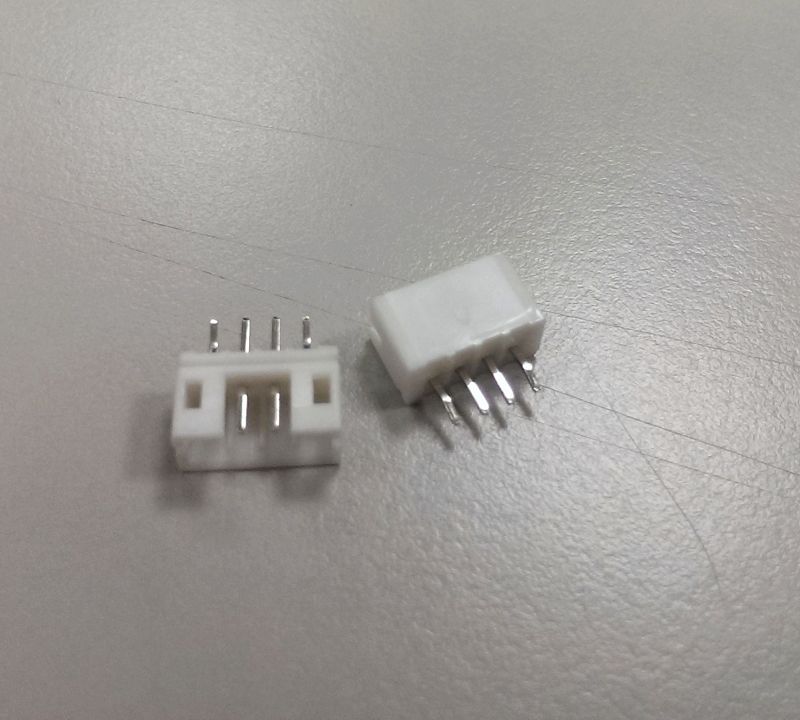

• 521 series 2.0mm Shrouded Header and Crimp Housing and Contact 02 to 16 contacts

    521 series 2.0mm Shrouded Header and Crimp Housing and Contact 02 to 16 contacts

    Technical data:
    Contact Material:     Copper alloy
    Applocable wies: AWG # 24 to 32
    Wafer (Housing) Materal: Nylon,
                                                      UL 94V-0
    Current rating : 1A AC, DC
    Voltage rating : 100V AC, Maximum
    Temperatur range : -25℃〜 +90℃
    Contact Resistance: 20 mohm Max
    Insulation Resistance: 1000 Mohm min
    Withstand Voltage: 1500V AC/minute
    P.C.Board Thickness : 1.6mm (0.063")

    View customer Drawing (Pdf)
