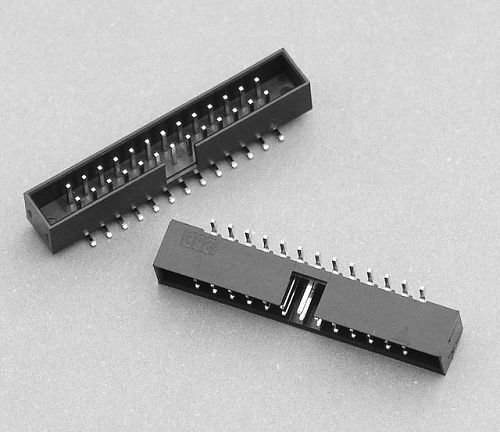

635 series Low Profile Header with Straight & Angle Pins 2.0mm pitch

nsulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: 0.50 x 0.50mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 1 Amp

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃to + 105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.

Mates with: 343,316,618
