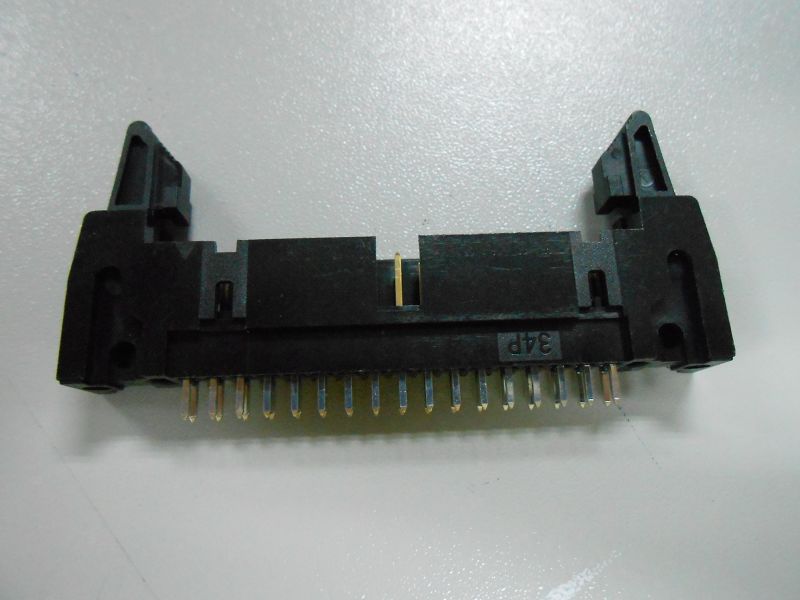

138 series Ejector Header Dip & SMT Type Pitch 2.54mm,High Temperature Thermoplastic

Technical data:
Insulator Material: High Temperature

                                   Thermoplastic,PA6T UL 94V-0

Contact: 0.64 x 0.64mm

Contact Material: copper alloy

Plating: Au or Sn over Nickle

Current Rating: 3 Amp

Insulator resistance: 5000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp:230℃ for 30-60 seconds.

                                      260℃ for 10 seconds.

Mates with: 141
