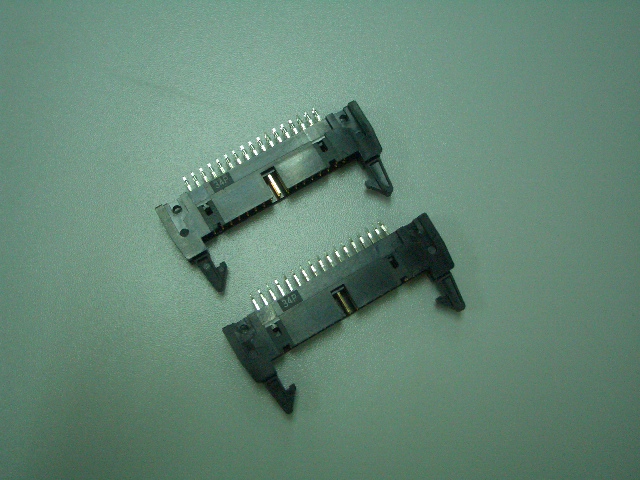

    138PF series Ejector Header press fit Type Pitch 2.54mm

    Technical data:
    Insulator Material:     Thermoplastic,UL 94V-0

    Contact: 0.64 x 0.64mm

    Contact Material: copper alloy

    Plating: Au or Sn over Nickle

    Current Rating: 3 Amp

    Insulator resistance: 5000 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃ to +105 ℃.

    Max. processing Temp: 230 ℃ for 30-60 seconds.    (Only for SMT type)260  ℃ for 10 seconds.

    Mates with: 141

    View customer drawing(Pdf)

138PF series Ejector Header press fit Type Pitch 2.54mm

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 138PF
Nr. of Contact
Latch lever
Plating
Solder tail 33: 3.30mm
