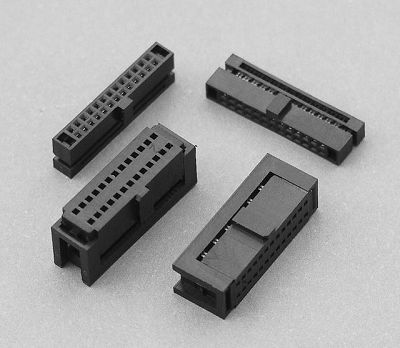

134,134-1 series 1.27mm I.D.C SOCKET

Technical data:
Insulator Material: High Temperature

                                  Thermoplastic,UL 94V-0

Contact: Stamped and formed, BeCu

Plating: Au/Sn over Nickle

Wire size: 30 AWG

Current Rating: 1 Amp

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃to + 105 ℃.

Max. processing Temp: 230℃ for 30-60 seconds.

                                          260℃ for 10 seconds.

Mates with: For  0.40 Male header 1.27 x 1.27mm
