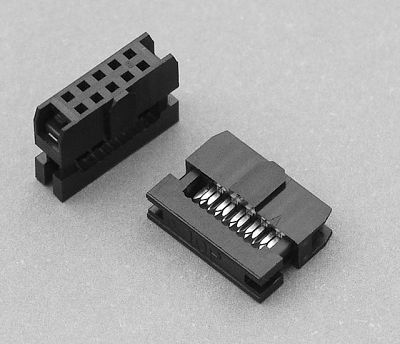

343 series IDC Socket Connector DIN 41651 Pitch 2.00mm

Technical data:
Insulator Material: Thermoplastic,UL 94V-0

Contact: stamped and formed, Phosphor Bronze

Plating: Au or Sn over Nickle

Wire size:28 AWG

Current Rating: 1 Amp

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Mates with: Pitch 2.0mm      0.50mm male header
