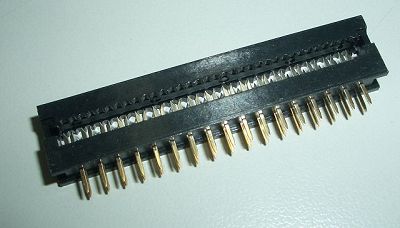

344 series IDC-Printed Connector Dip Spacing 2.00mm

Technical data:
Insulator: Thermoplastic,UL 94V-0

Contact:stamped and formed,Phosphor Bronze

Plating:Au or Sn over Nickel

Wire size:28 AWG

Current Rating:1 Amp

Contact resistance:20 milliohms min.

Dielectric withstanding:AC 500V for 1 Minute.

Operating temperature: -40℃ to +105℃

Mates with:Pitch 2.0mm   0.50mm male header
