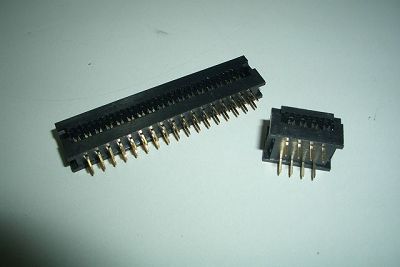

• 139,140 series IDC Connector DIP Type & Printed Circuit Type Pitch 2.54mm

    139,140 series IDC Connector DIP Type & Printed Circuit Type Pitch 2.54mm

    Technical data:
    Material Insulator:     Thermoplastic,UL 94V-0

    Contact:stamped and formed,Phosphor Bronze

    Plating: Au or Sn over Nickel

    Wire size:28 AWG

    Current Rating:3 Amp

    Contact resistance:20 milliohms Max.

    Insulator resistance:1000 Megohms min.

    Dielectric withstanding:AC 500V for 1 Minute.


    Operating temperature: -40℃ to +105℃

    View customer Drawing (Pdf)

139,140 series IDC Connector DIP Type & Printed Circuit Type Pitch 2.54mm

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 139
Terminal Code
Plating Option 60: Selective gold plated
