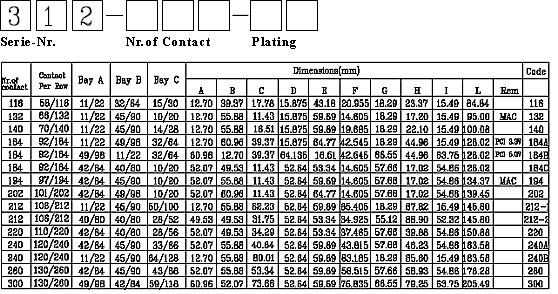

312 series High-Density Edge Card Connector pitch 1.27mm 3 slot

Technical data:
Body: High temperature thermoplastic,UL 94V-0
Contacts: Copper alloy
Contact Plating: Gold plating over nickel on contact
                               area Tin/Lead plating on terminal
Contact Normal Force: 75 Grams min.
Insertion Force: 7oz.max. per mated pair
Contact Retention: 1 oz. min. per mated pair
Mating Durability: 100 cycles
Operation Voltage: 125 VAC max
Current Rating: 1 Ampere per contact
Contact Resistance: 30 Milliohms max. inital,
                                      10 Milliohms max. increase through
                                       testing
Insulation Resistance: 1000 Magohms min.
Dielectric Withstanding Voltage: 500 VAC
Capacitance: 2 pf max.
