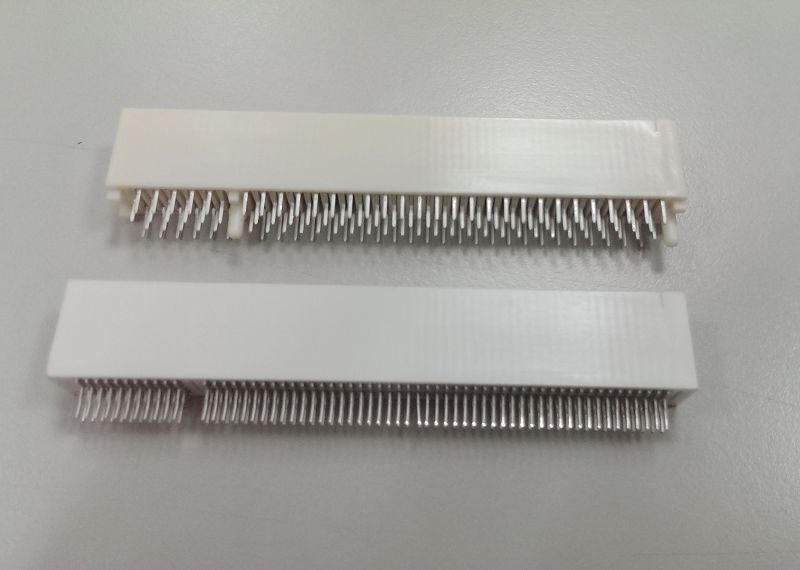

• 122 series High-Density Edge-Card Connector with pitch 1.27mm 2 Slot

    122 series High-Density Edge-Card Connector with pitch 1.27mm 2 Slot

    Technical data:
    Insulator:     Polyphenylen sulfid
    Burning properties: Self extinguishing to UL94V0
    Contact: Phosphor bronze
    Contact surface: Mating area gold over nickel
                                    Solder area tim over nickel
    Operating temperature: -65℃ to + 125℃
    Electrical data:
    Current rating: 1A
    Electrical rating: min. 500V
    Insulation resistance: min. 1000 MOhm

    View PDF Drawing

122 series High-Density Edge-Card Connector with pitch 1.27mm 2 Slot

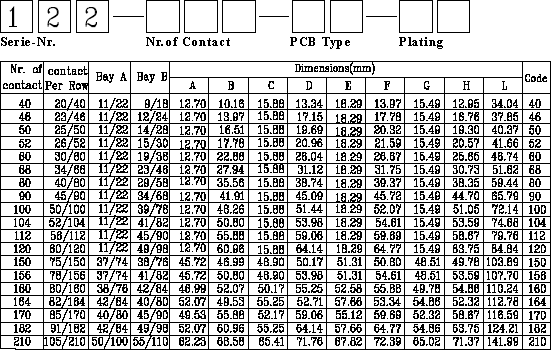

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 122
Nr. of Contact
Solder PCB Type
Plating Option 60: Contact area gold Solder area Tin
