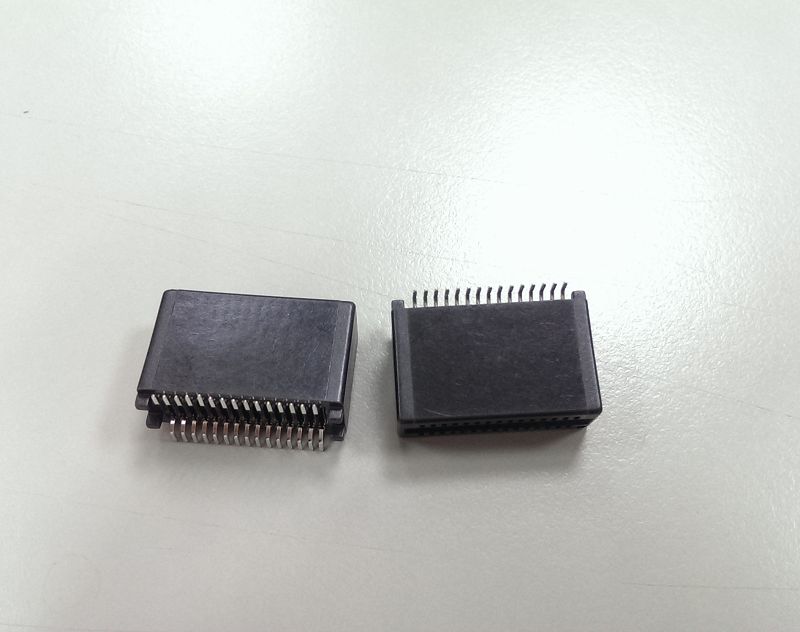

121 series High-Density Edge-Card Connector Pitch 1.27mm 1 Slot

Technical data:
Insulator: High Temperature Termoplastic

Color Insulator: Black

Burning properties: Self extinguishing
                                      to UL94V-0
Contact: Copper Alloy
Contact surface:   Mating area gold over nickel
                                Solder area tim over nickel
Operating temperature: -55℃ to + 105℃
Electrical data:
Current rating: 1A
Electrical rating: min. 500V
Insulation resistance: min. 1000 MOhm
