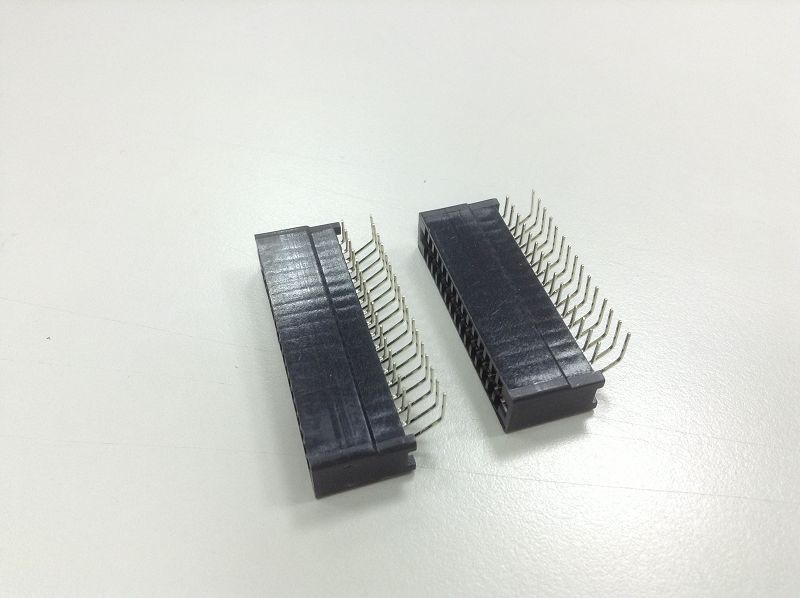

    120 series PCB-Edge-Card Connector 90° Right Angle pitch 2.54mm

    Technical data:
    Insulator:     Thermoplastic polyester
    Color Insulator: Black
    Burning properties: Self extinguishing to UL94V0
    Contact: Phosphor bronze
    Contact surface: Mating area gold over nickel
                                    Solder area tim over nickel
    Operating temperature: -40℃ to + 105℃
    Electrical data:
    Current rating: 1A
    Electrical rating: min. 500V
    Insulation resistance: min. 1000 MOhm

    View customer Drawing (Pdf)

120 series PCB-Edge-Card Connector 90° Right Angle pitch 2.54mm

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 120
Nr. of Contact
Plating Option 60: Contact area gold Solder area Tin
