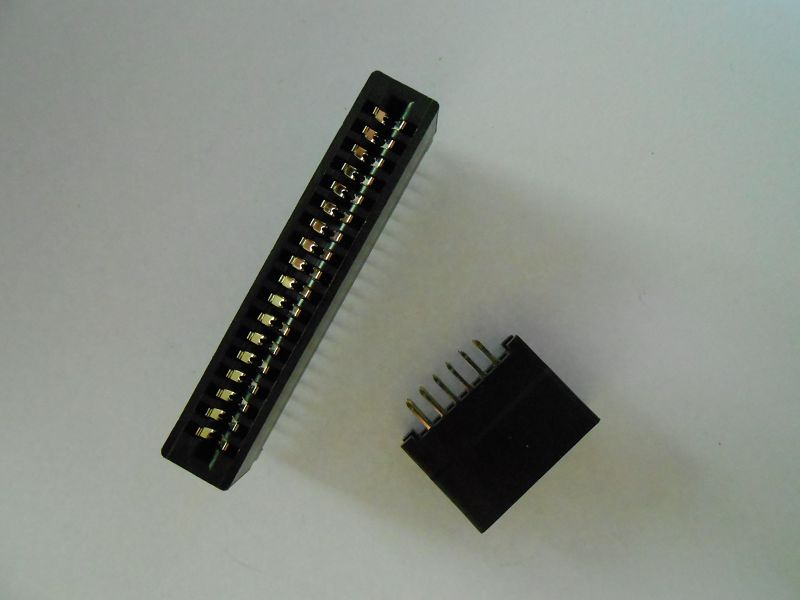

• 119 series PCB-Edge-Card Connector Pitch 2.54mm

    119 series PCB-Edge-Card Connector Pitch 2.54mm

    Technical data:
    Insulator:     Thermoplastic polyester
    Color Insulator: Black
    Burning properties: Self extinguishing to UL94V0
    Contact: Phosphor bronze
    Contact surface: Mating area gold over nickel
                                   Solder area tim over nickel
    Operating temperature: -65℃ to + 105℃
    Electrical data:
    Current rating: 1A
    Electrical rating: min. 500V
    Insulation resistance: min. 1000 MOhm

    View customer Drawing (Pdf)

119 series PCB-Edge-Card Connector Pitch 2.54mm

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 119
Nr. of Contact
Mounting EAR option
Plating Option 60: Selective gold flash plated
