• 199 / 203 series IC-Socket-Economy Type 2.54mm pitch

    Technical data:
    Insulator body: Glass filled thermoplastic polyseter,
                                  self-extinguishing, rated UL94-V0
    Current Rating: 1 Amp
    Insulator resistance: 1000 Megohms min.
    Contacts resistance: 20 m ohms max.
    Dielectric withstanding: AC 500V
    Contact: Phosphor bronze.
                     Tin plated

    View customer Drawing (Pdf)

199 / 203 series IC-Socket-Economy Type 2.54mm pitch

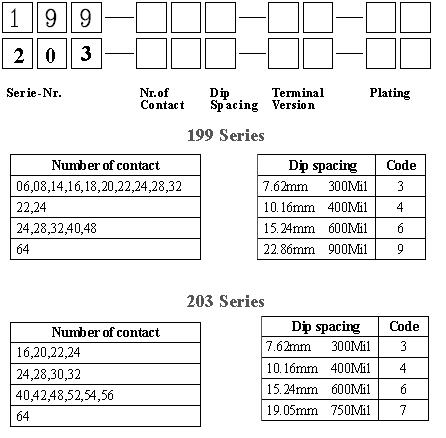

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr.
Nr. of Contact
Dip Spacing
Terminal version 10: Straight tail version
Tin plated 50: Tin plated
