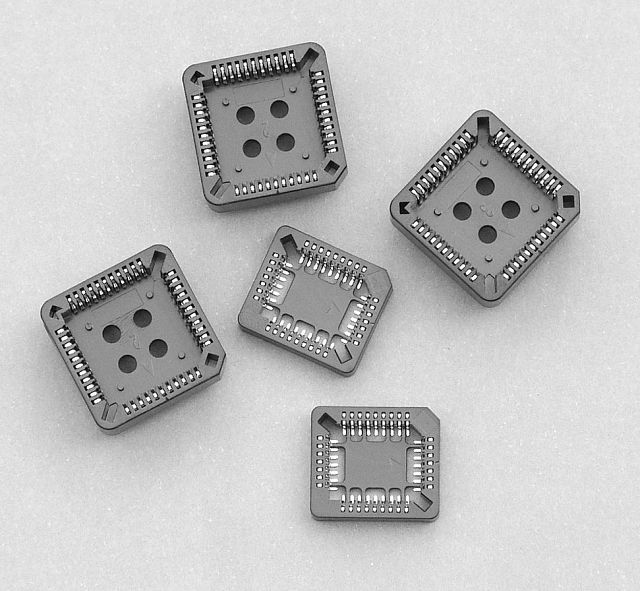

350-1 series PLCC-Chip-Carrier Sockets for Dip straight & SMT- Type-flat

Technical data:
Insulator Material: PPS for 196 Series      Ny-6T for 350-1 Series     self-extinguishing rated UL 94-V0

Plating: Tin over 50U" Nickle

Operating Voltage: 200 VAC

Current Rating: 1 Amp

Insulator resistance: 1,000 Megohms min

Current resistance: 30 Milliohms max

Dielectric withstanding  Voltage: 600VAC for 1 Minute.

Durability: 20 Times or more at matching IC

Nomal Force: 200 Grams Min.

Operating Temperature: -40 ℃to + 105 ℃.

Max. processing Temp (For 350-1 Series Only): 230 ℃ for 30-60 seconds.    260  ℃for 10 seconds.
