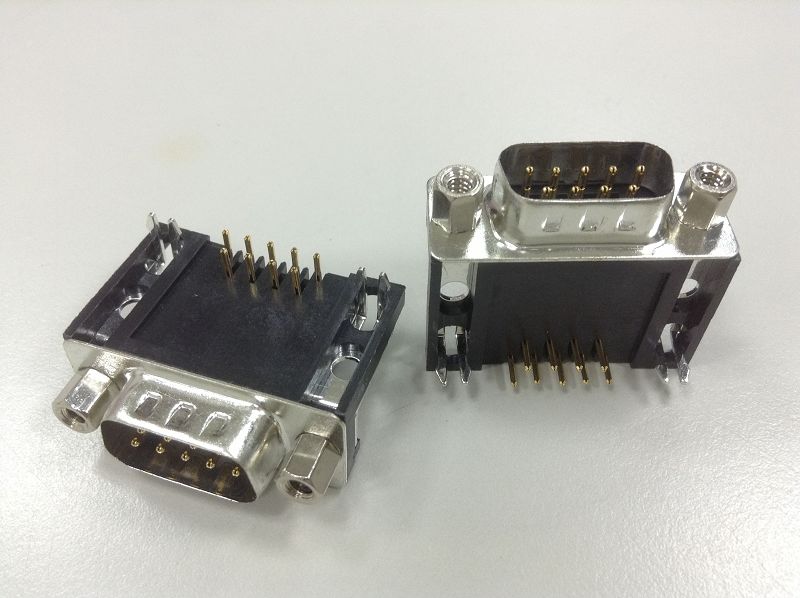

113 series D-sub R/A 13.84mm type

Technical data:
Material shell: Steel tin coat over nikel
Insulator: Thermoplastic polyester
Burning properties: Self-extinguishing rated
                                      94V-0
Contact: Copper alloy
Contact surface: Gold plated over nickel
Operating temperature: -55℃ to + 105℃
Electrical data:
Current rating: 5A
Working voltage: 125VAC
Test voltage: 1000V/50HZ
Contact resistance: 10mOhm
Insulation resistance: 10¹⁰Mohm min. 500V DC
Mating cycles: Glass 3=min. 50cycles
