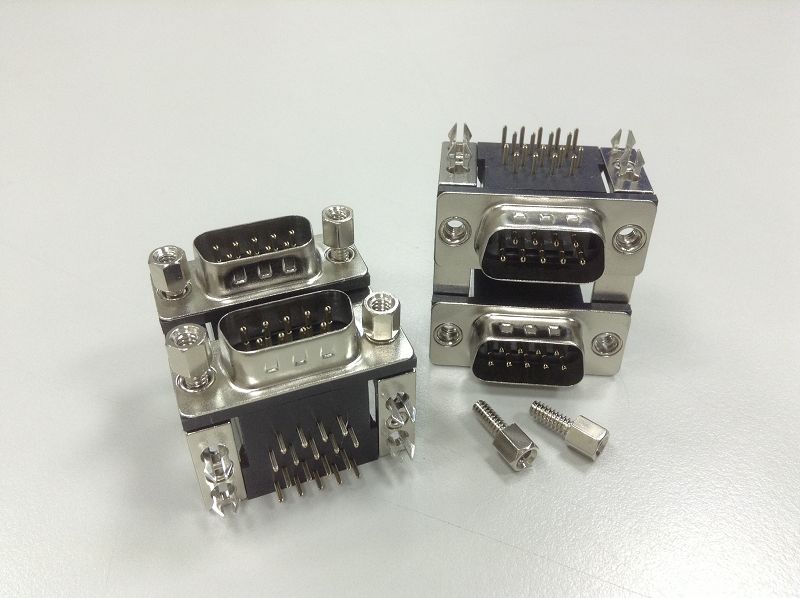

380 series D-sub Dual Port P.C. Connector

Technical data:
Insulator Material: P.B.T. and glass fiber reinforced
                                    (JL94V-0)
Contact Material: Plug (Male)...Brass
                                 Socket (Female) ...Phosphor Bronze
Shell Finish: Steel, Tin or Zinc plated
Durability: 100 Cycles min.
Mating and Unmating Force: gold plated over nickel
Contact Numbers: 9           25
Mating Force (Kgf max.):    4.6     12.7
Unmating Force (kgf min.): 0.4     0.8
ELECTRICAL:
Current Rating: 5 Amp
Dielectric Withstanding Voltage: AC 1000V min.
                                                              (For 1 minute)
Insulator Resistance: 5000Mohm Min. (At DC 500V)
Contact Resistance: 25mohm max. mated
Working Temperature: -55℃ to + 105℃
