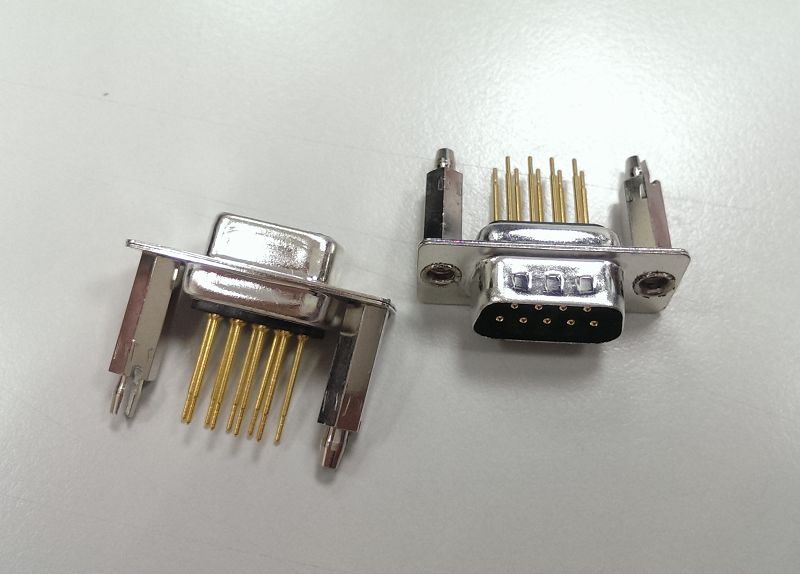

300 series D-sub Connector with Wire Machine contact

Technical data:
* Precision machined contacts from copper alloy
*Available 3Level (2 level on request)

Material and finish:
shell: Steel tin-coat over nikel
Insulator: Thermoplastic polyester
Burning properties: Self-extinguishing rated
                                      94V0
Contact: Copper alloy
Contact surface: Gold plated over nickel
Operating temperature: -55℃ to + 105℃
Electrical data:
Current rating: 5A
Working voltage: 125V AC
Test voltage: 1000V/50HZ
Contact resistance: <=3mOhm
Insulation resistance: >=10ⁿOhm
Mating cycles: Class 1=min. 500cycles
                            Class 2=min. 400cycles
                            Class 3=min. 50cycles
