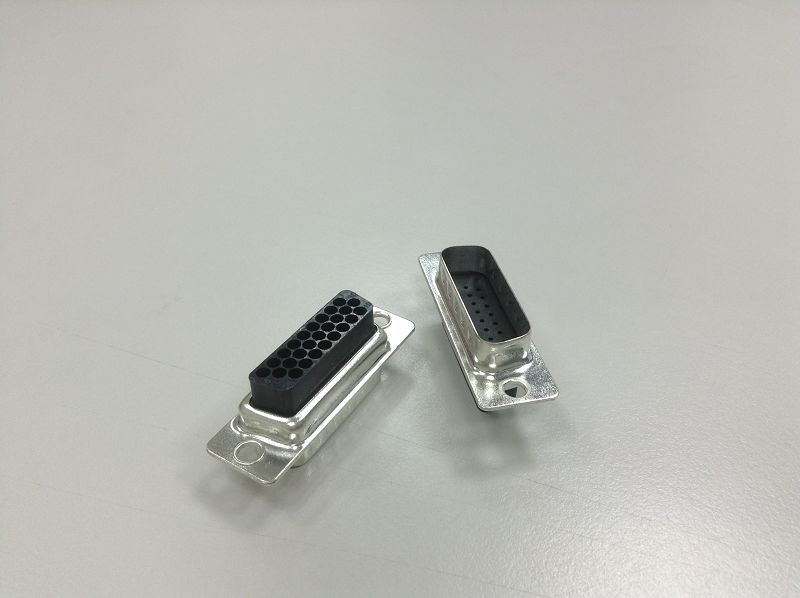

116 series D-sub Connector High-Density crimp Type

Technical data:
Contact Resistance: Som ohm max.
                                     at DC 100mA
Insulator Resistance: 1000M ohm min
                                        at DC 500V
Current Rating: 3 AMP
Dielectric Withstanding
Voltage: AC 1000V For 1 minute
Operating Temperature: -55℃ to + 105℃
Contact: Brass or Phosphor Bronze
Housing: PBT & 30% Glass Fiber (UL 94V-0)
