• 115 series D-sub Connector Crimp Type acc.

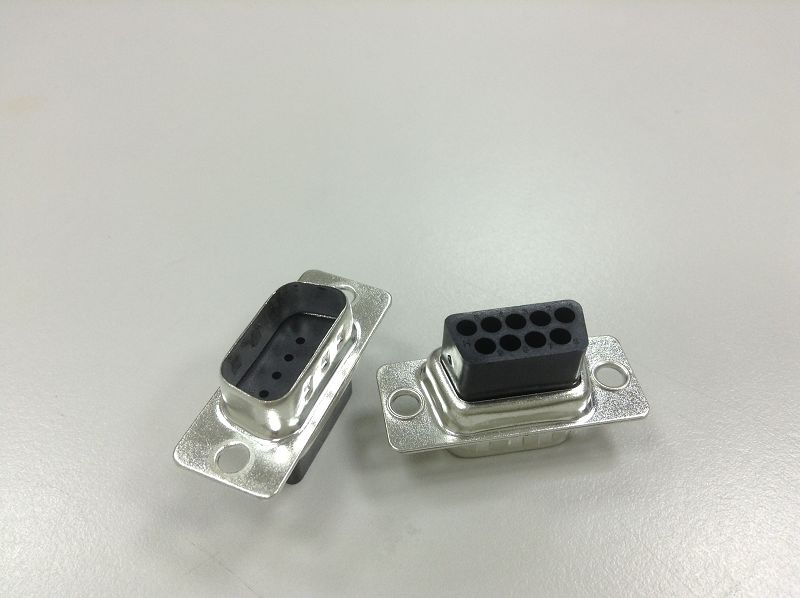

    115 series D-sub Connector Crimp Type acc.

    Technical data:
    Material Shell:     steel tin-coat over nickel
    Insulator: Thermoplastic polyester
    Buming properties:  self-extinguishing to UL94V0
    Contact: Phosphor bronze
    Contact surface: gold plated voer nickel
    Operating Temperature: -55℃ to + 125℃

    View customer Drawing (Pdf)

115 series D-sub Connector Crimp Type acc.

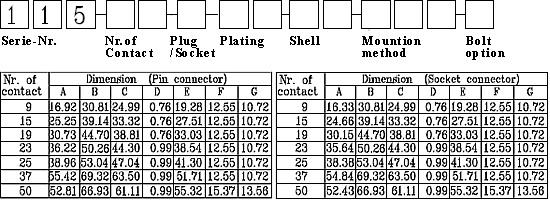

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 115
Nr. of Contact
Terminal Type
Plating Option
Shell
Mounting method
Hexagonal Bolt Option
