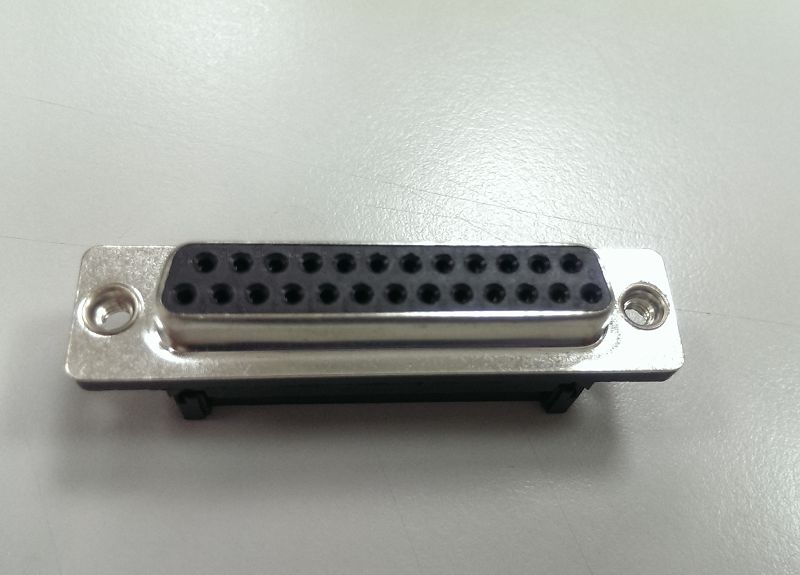

    114 series D-sub-Flat-Cable Connector acc. TO DIN 41652

    Technical data:
    Material shell:     Steel tin-coat over nikel
    Insulator: Thermoplastic polyester
    Burning properties: Self-extinguishing rated
                                          94V-0
    Contact: Cooper alloy
    Contact surface: Gold plated over nickel
    Operating temperature: -55℃ to + 105℃
    Electrical data:
    Current rating:     5A
    Working voltage: 125V AC
    Test voltage: 1000V/ 50hz
    Contact resistance: 10mOhm
    Insulation resistance: 1010 mOhm min. 500VDC
    Mating cycles: Class 3=min. 50cycles

114 series D-sub-Flat-Cable Connector acc. TO DIN 41652

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 114
Nr. of Contact
Terminal Type
Termination option
Cable clamp option
Plating Option 60: Selective gold plated
Insulator color
