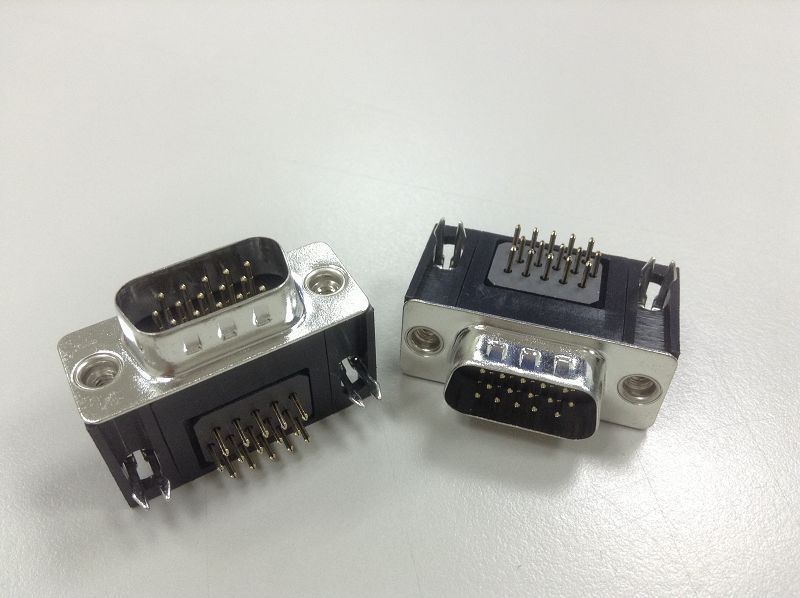

347 series High-Density-Filter- Connector EMI- type 90° R.A.

Technical data:
Material shell: Steel tin-coat over nikel
Insulator: Thermoplastic polyester
Burning properties: Self-extinguishing rated
                                       94V-0
Contact: Phosphor bronze
Contact surface: Gold plated over nickel
Operating temperature: -55℃ to + 105℃
Electrical data:
Current rating: 5A
Working voltage: 125V AC
Test voltage: 1000V for 1 minute
Contact resistance: 10 mOhm
Insulation resistance: 1000 Mohm min. 500V DC
Mating cycles: Class 3=min. 50cycles
Impedance: 16 MOhm-25MHZ
                       32 MOhm-100MHZ
Frequency field: 300MHZ
