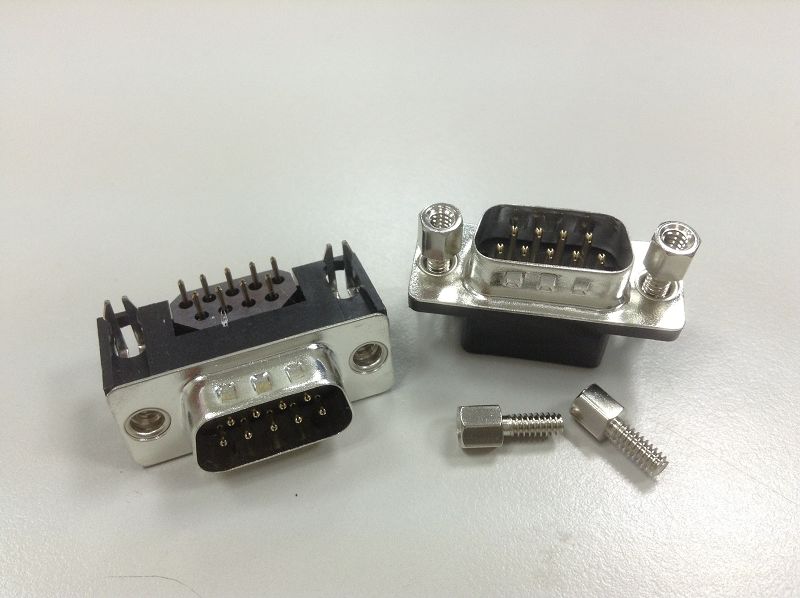

346 series Filter-Connector EMI type 90° Right Angle

Technical data:
Material shell: Steel tin-coat over nikel
Insulator: Thermoplastic polyester
Burning properties: Self extinguishing rated
                                       UL94V0
Contact: Copper alloy
Contact surface: Gold plated over nickel
Operating temperature: -55℃ to + 105℃
Electrical data:
Current rating: 5A
Working voltage: 125V AC
Test voltage: 1000V for 1 minute
Contact resistance: 10mohm
Insulator resistance: 1000Mohm min. 500V DC
Mating cycles: Class 3=min. 50cycles
Impedance: 16 mOhm-25MHZ
                   32 mOhm-100MHZ
Frequency field: 300MHZ
